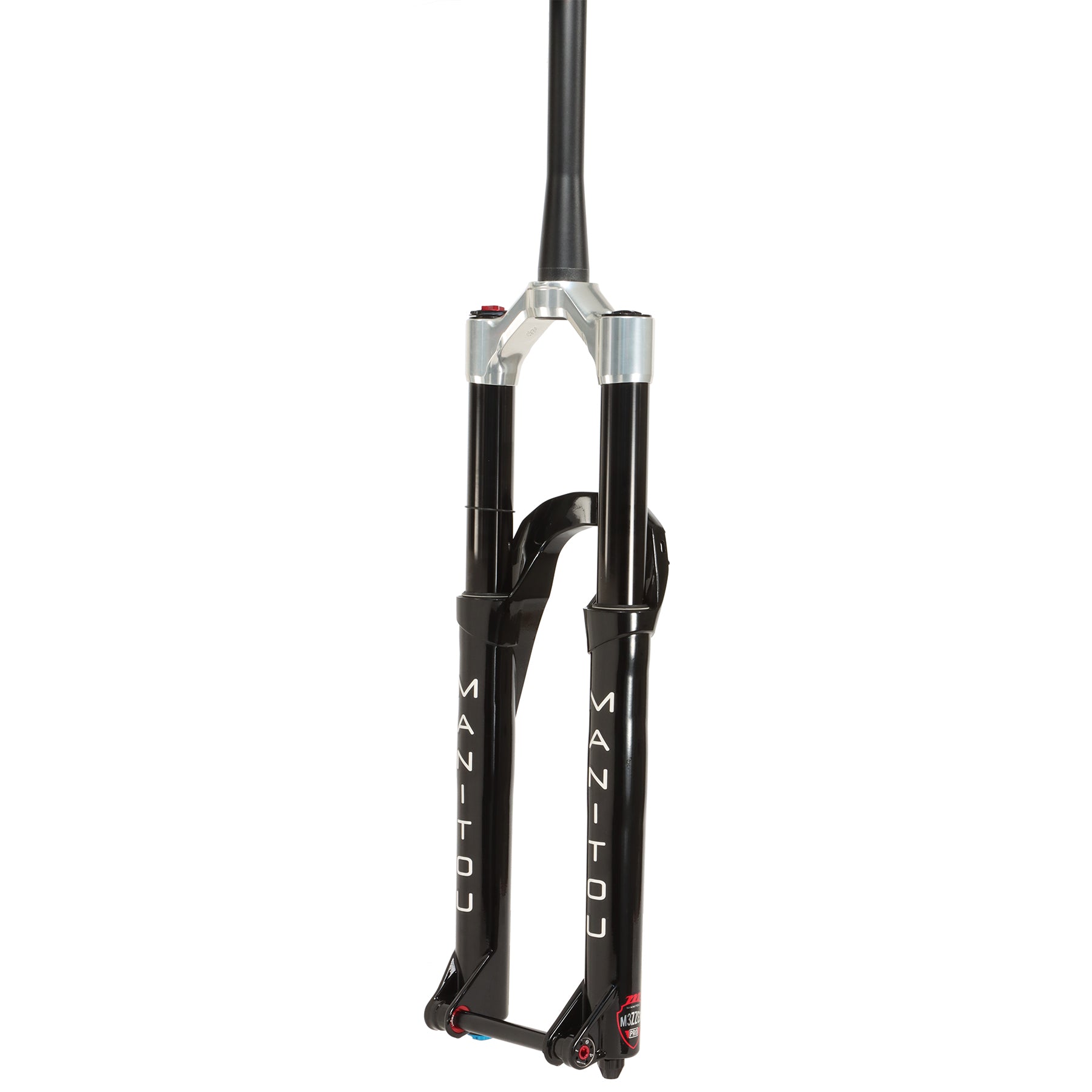

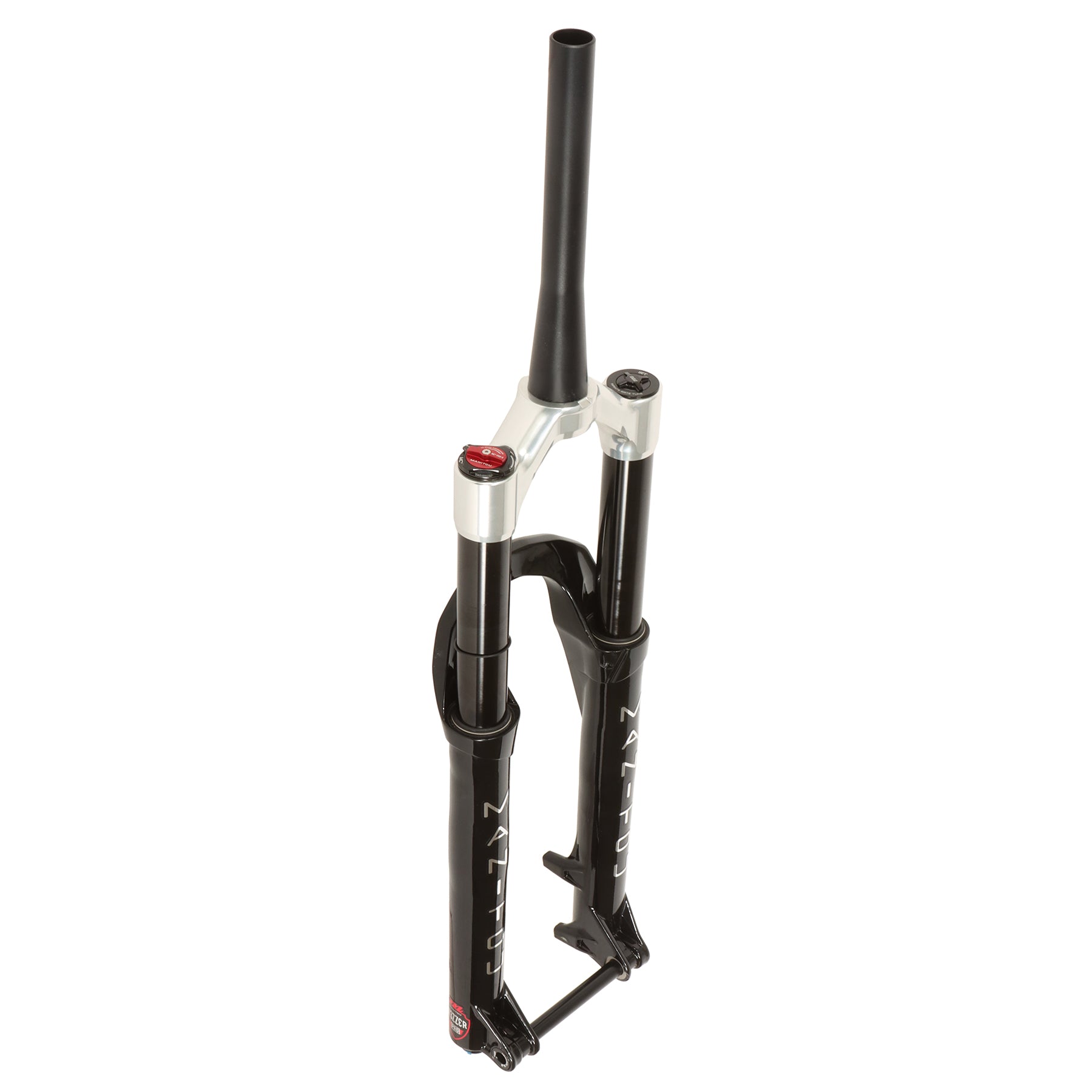

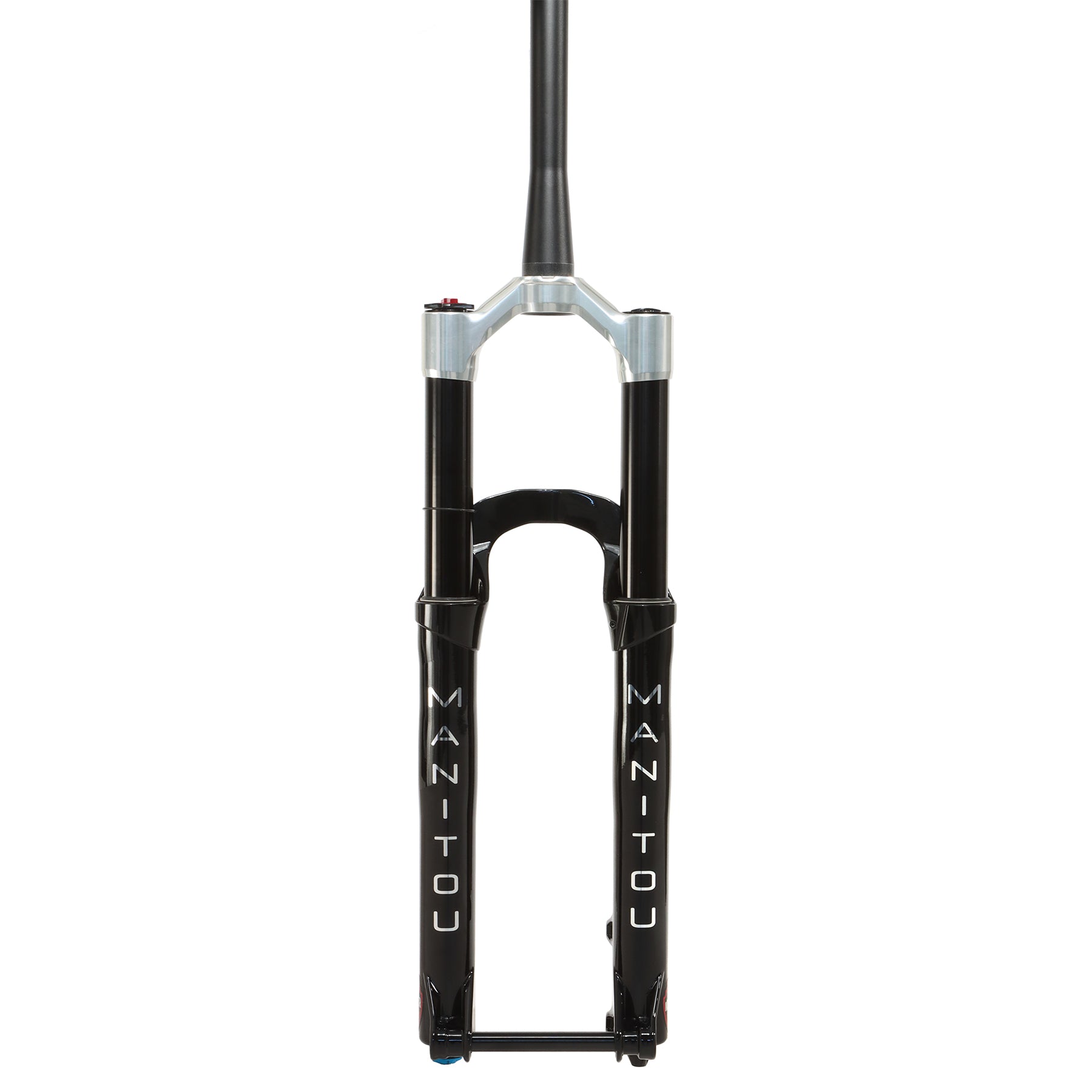

Mezzer Pro G2
Mezzer Pro G2
Mezzer Pro G2
Mezzer Pro G2
Mezzer Pro G2
Mezzer Pro G2
Mezzer Pro G2
Mezzer Pro G2

Mezzer Pro G2

191-40142-A004

Regular price$1,199.99
/
Shipping calculated at checkout.

  • In stock, ready to ship
  • Inventory on the way

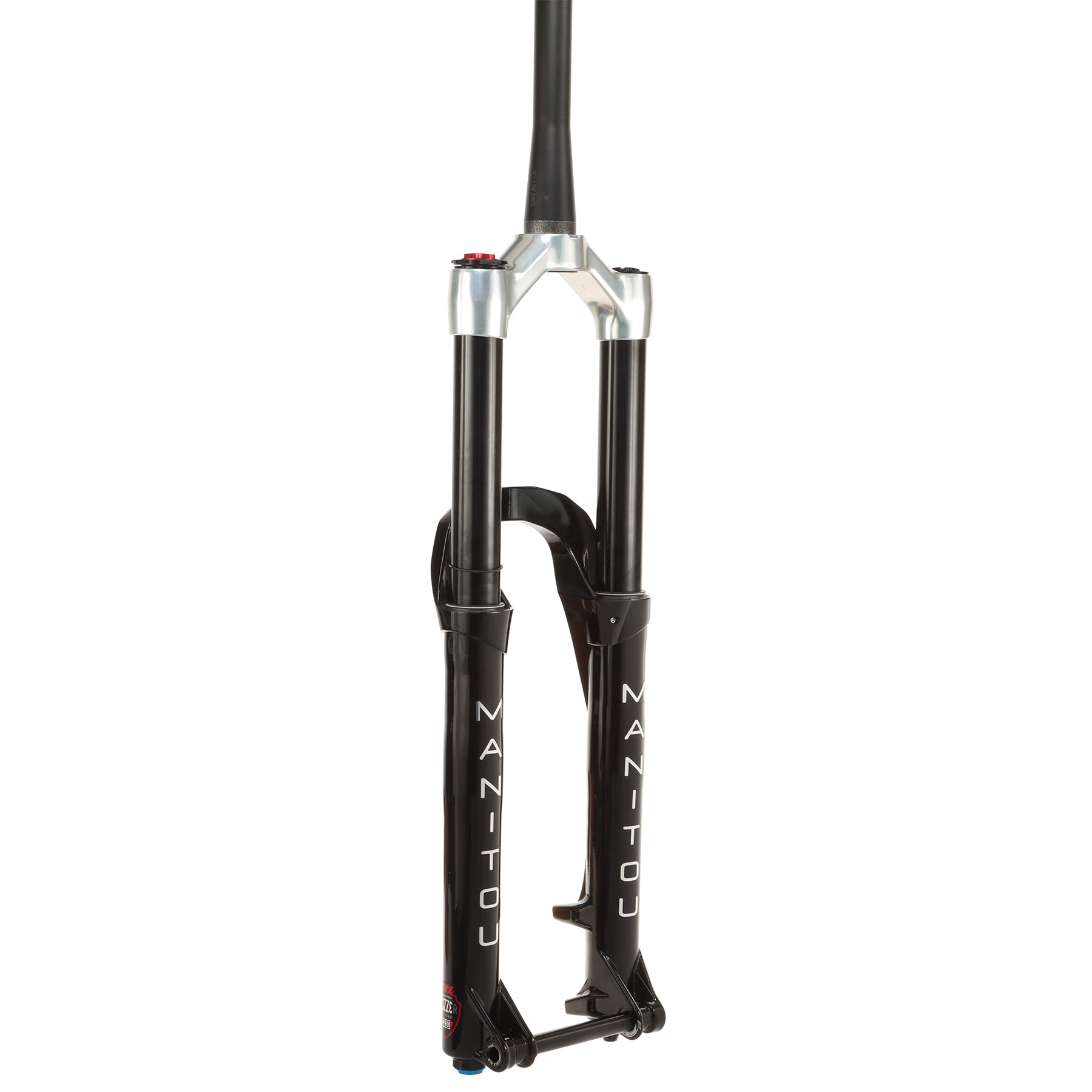

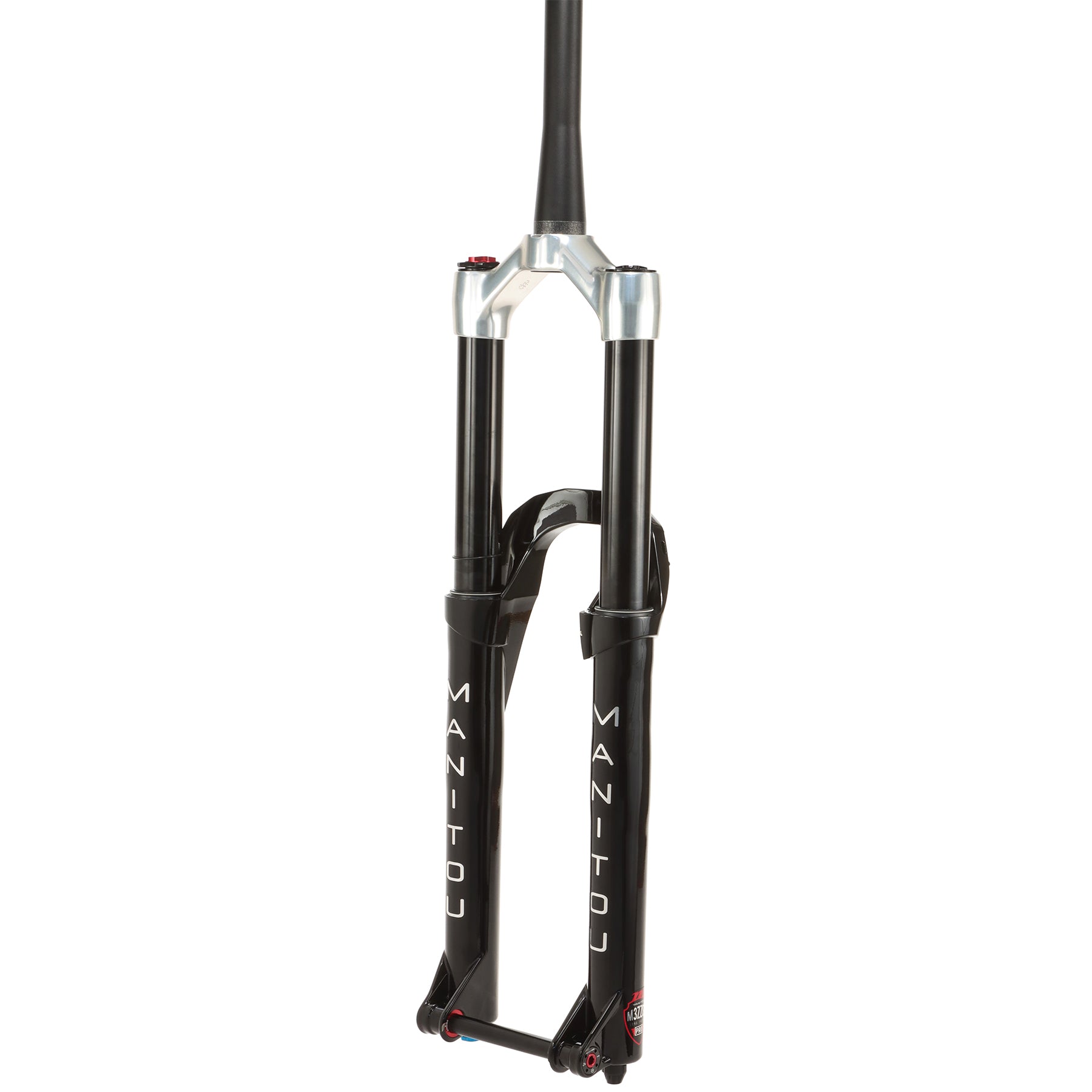

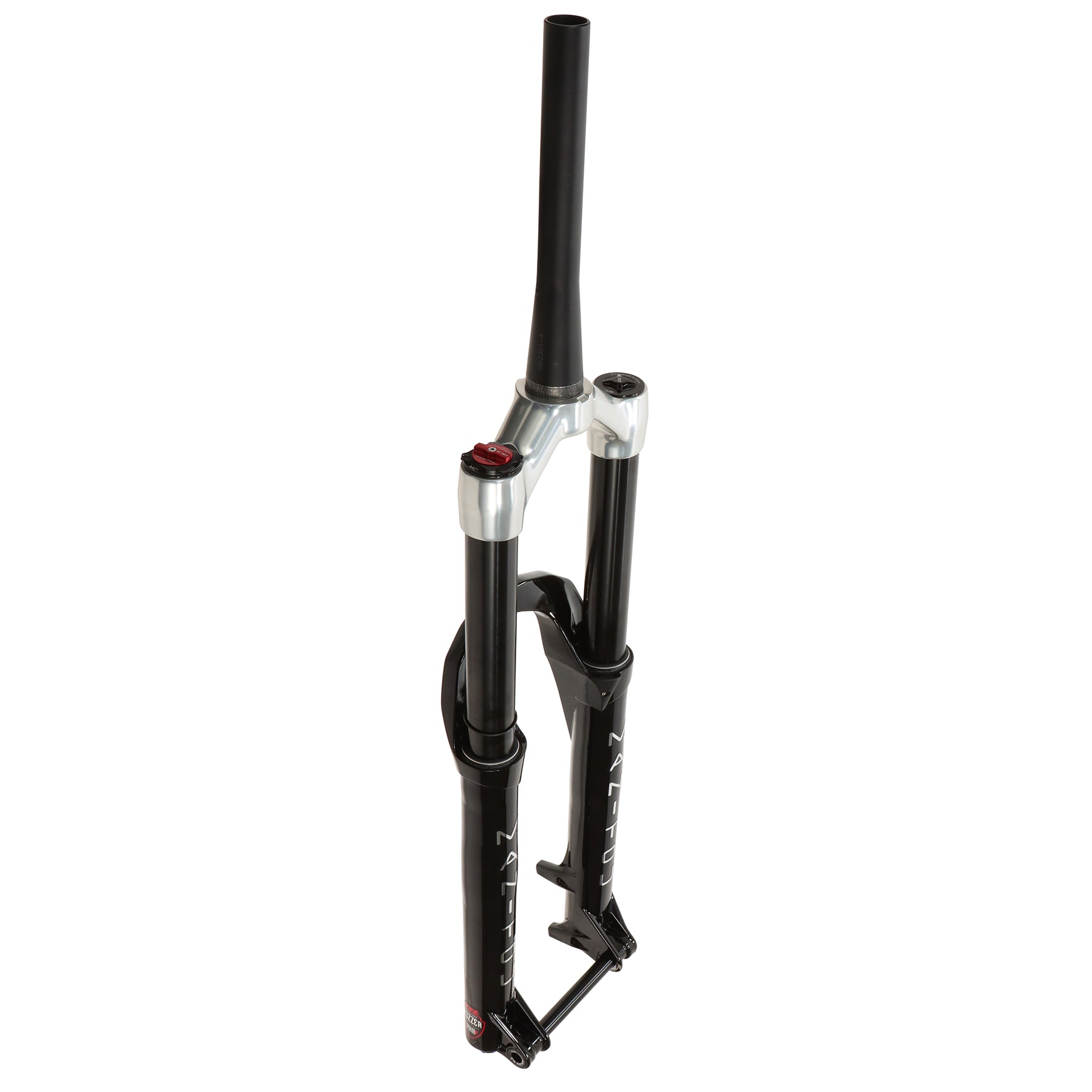

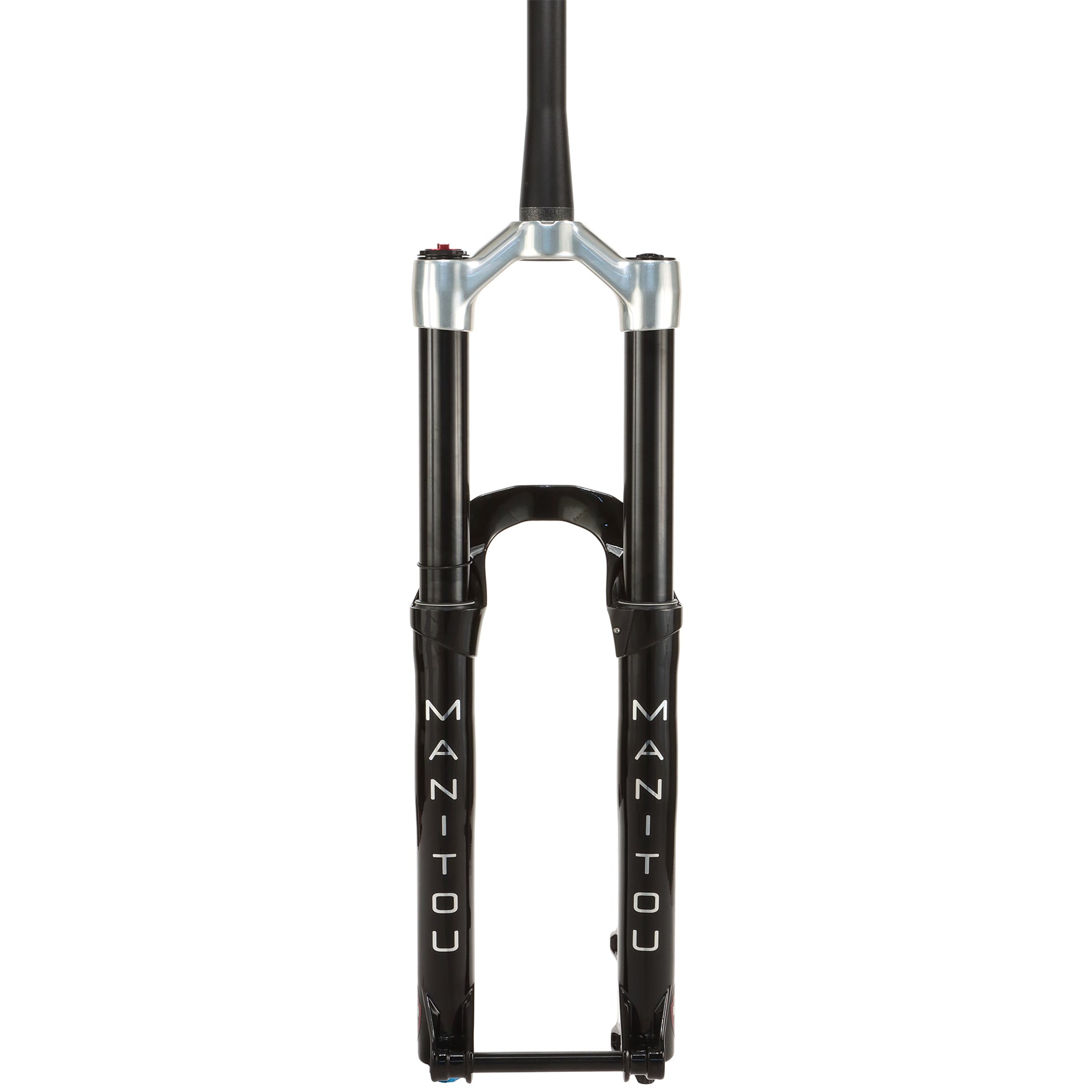

The most technologically advanced fork we have ever made. Lightest weight in the category, largest travel range (140-170), easiest travel adjustment with all components included. Dorado Air Active Spring Piston with IRT is the highest tech air spring system with the most adjustability. Active Spring Piston is a small coil spring that the Dorado Air piston rides on, it gives the fork the lowest initial break away force and smoothest quickest response to direction changes of the fork. The IRT allows for the highest level of air spring adjustability, giving unmatched mid stroke support. MC² PRO-X Damper with Air Backed Bladder is the lightest weight solution with 4 way external adjustability to fine tune the damping characteristics of the fork across a wide range of riders and conditions.

•Travel Spacers

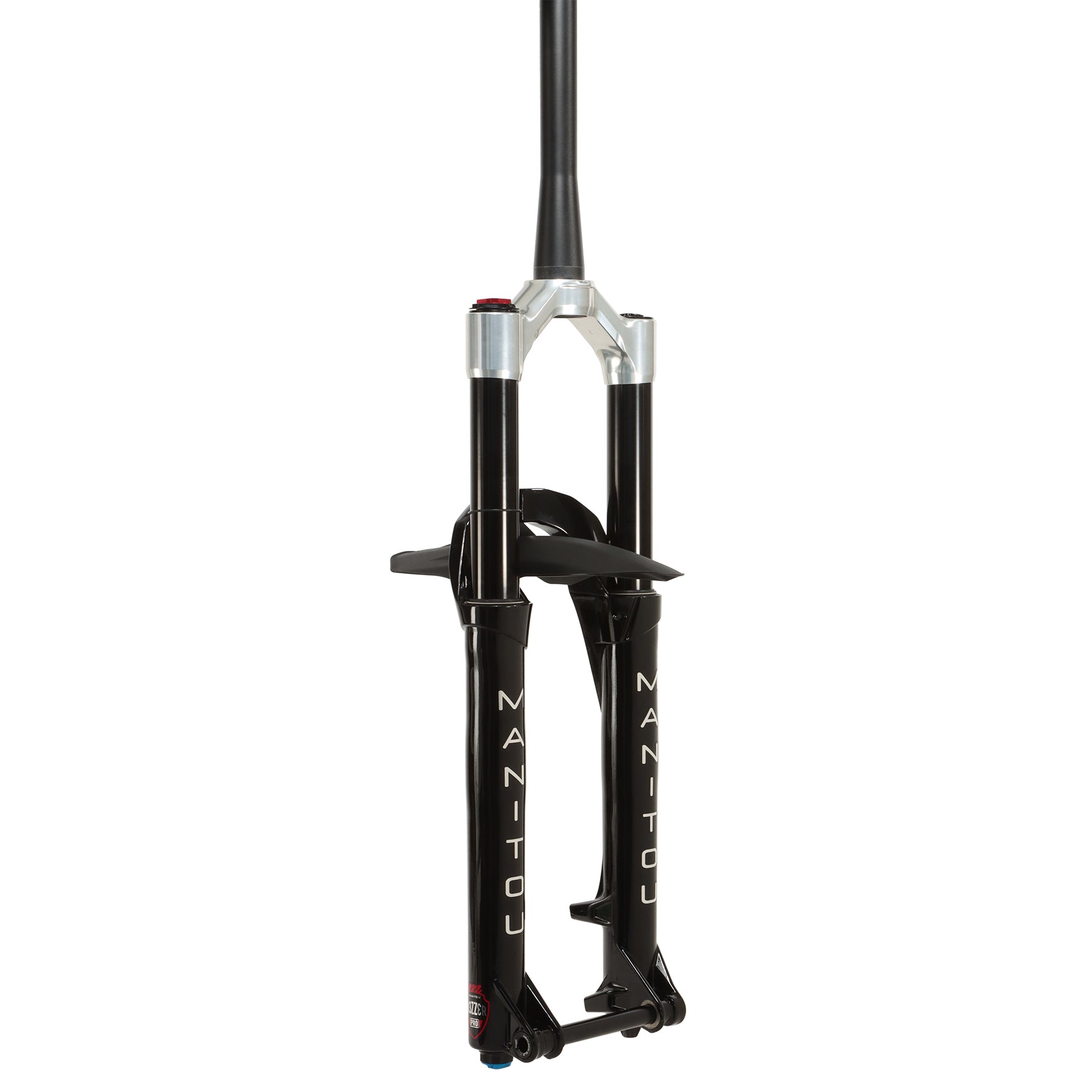

•Fender
•ABB air fill tool

•New air Spring - improved bump compliance and travel usage for a wider range of riders and conditions.
•4 way adjustable damper - provides improved support with less rider feedback. Allows for maximum adjustability and fine tuning of both compression and rebound.
•Air backed bladder - Lowest break away force with maximum consistency on during demanding riding conditions.

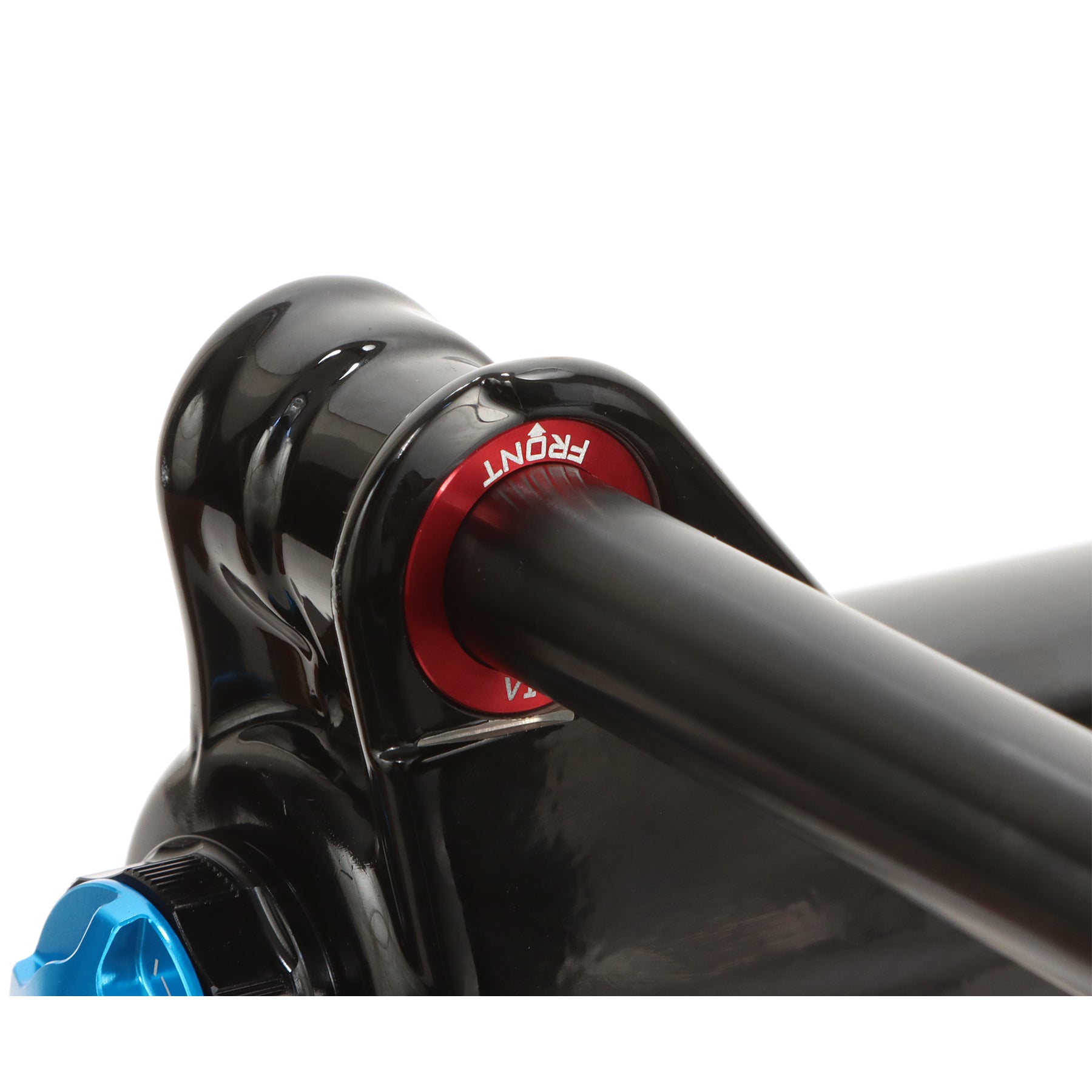

•Updated chassis - crown machining reduces weight, casting updates with new bushing bore machining process, drop out machining (MBA red ring) and arch ribbing improves casting stiffness to improve bushing alignment to reduce binding and create a smoother fork throughout the travel.
•Updated casting volume and bottom out system - allow full travel to be used more easily when needed with less overlap between bottom out bumper, HBO and end of stroke support from air spring.

Specifications

WHEEL SIZE 29"
WEIGHT 2030g
OFFSET 44mm
TRAVEL 140-170mm
AXLE TO CROWN 140mm = 551mm, add 10mm of height per 10mm of travel

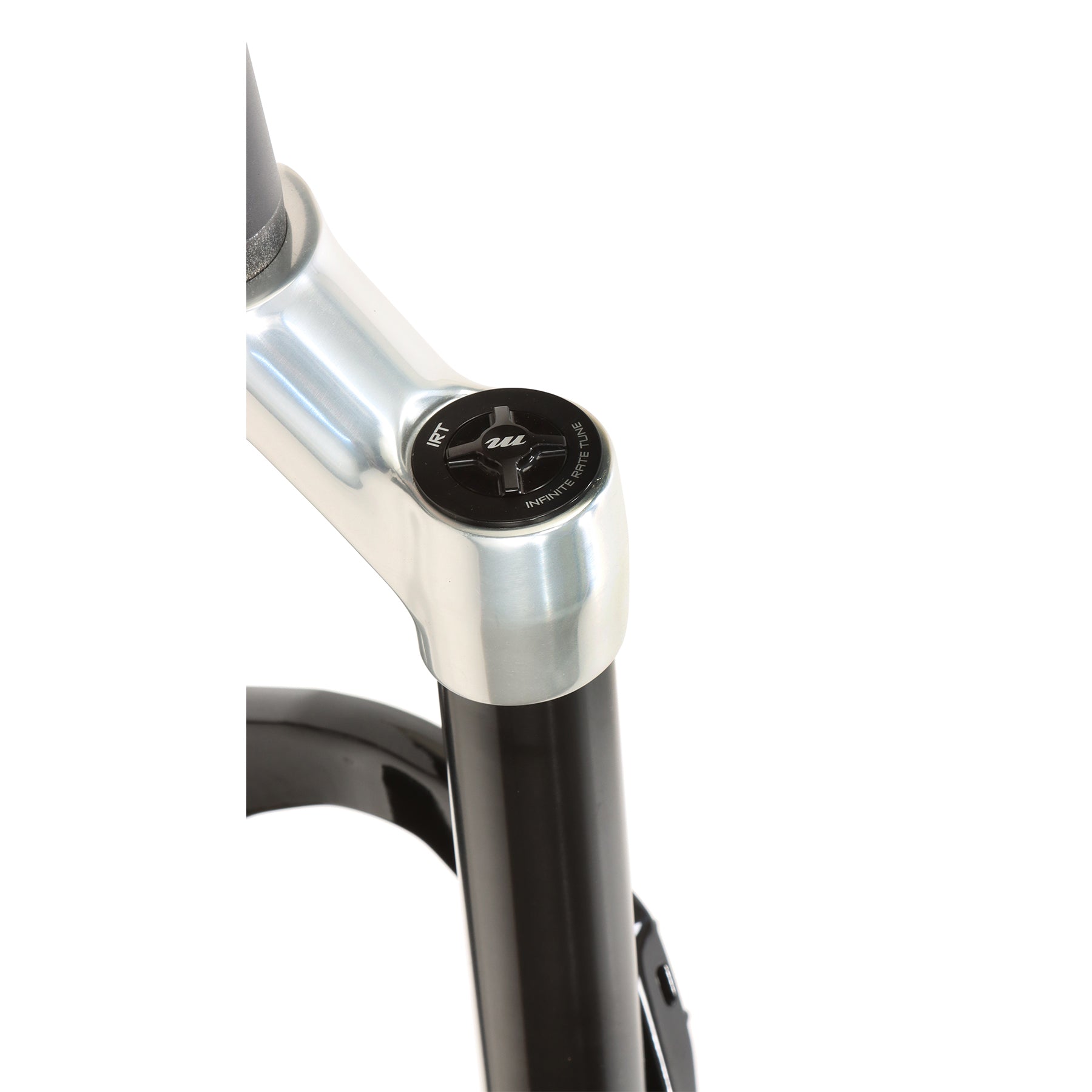

SPRING Dorado Air Active Spring Piston w/ IRT

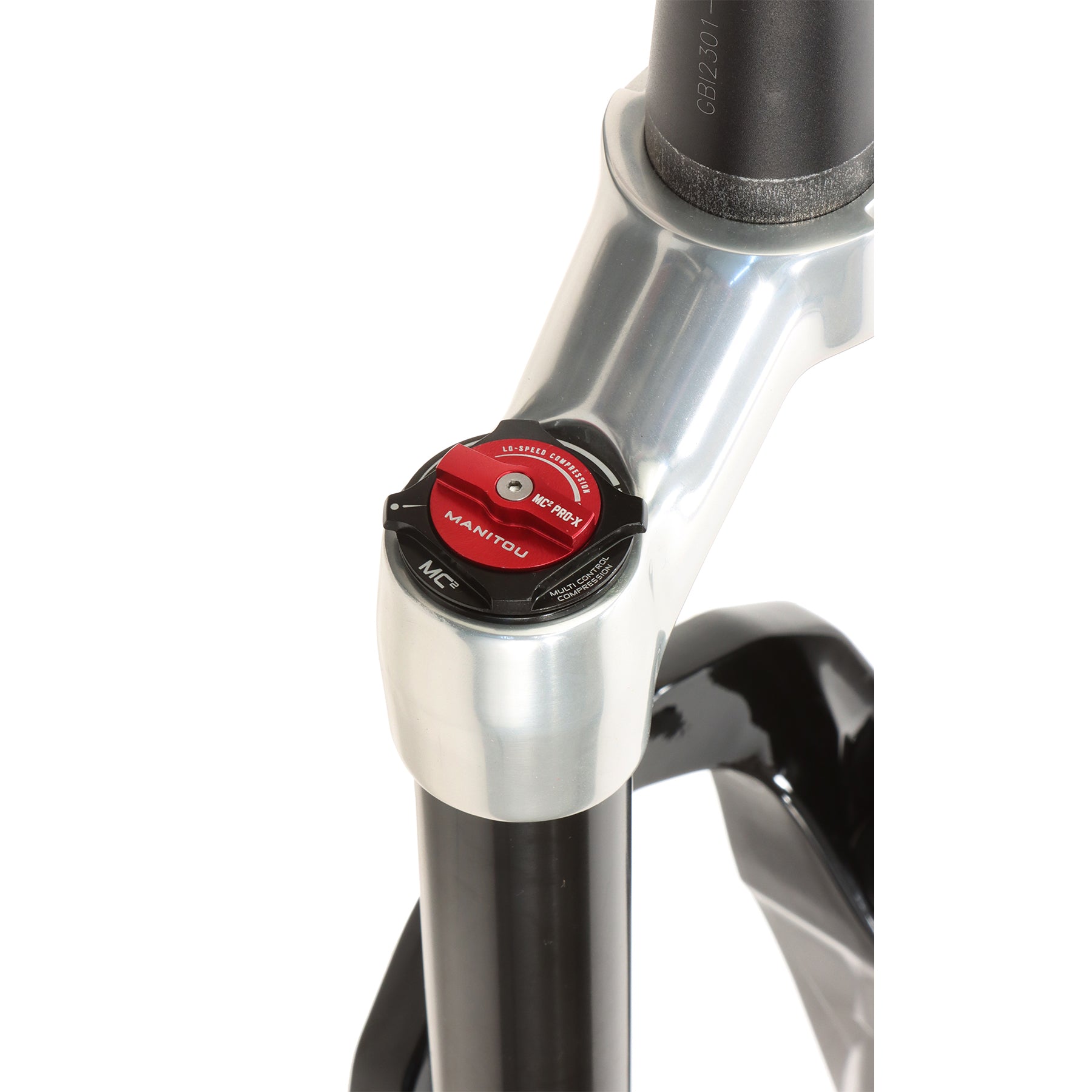

COMPRESSION DAMPING MC² PRO-X with HBO Sealed Cartridge
REBOUND DAMPING Sealed Cartridge TPC²
ADJUSTMENTS Air, IRT Pressure, Rebound, HSC, LSC, HSR, LSR, Air Backed Bladder
STEERER 1.5" Tapered
CROWN Forged Aluminum, Deep Hollow Bore w/ external machining polished silver
LEG DIAMETER 37mm
LEG MATERIAL 7000- Series Butted Wall Aluminum
BRAKE Post Mount 180mm (223mm Max)

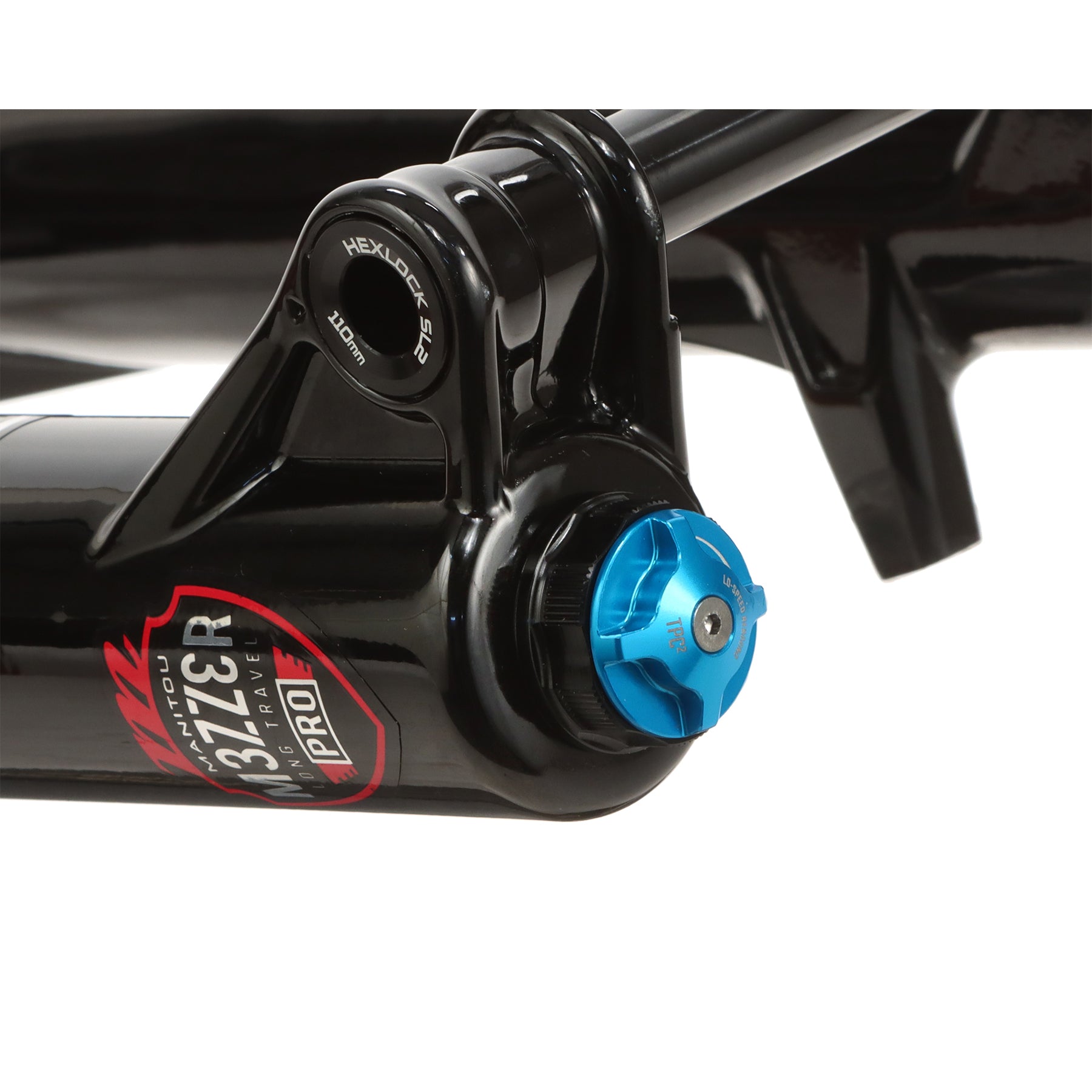

AXLE 15mm x 110mm Hexlock SL2
MAX TIRE SIZE 69mm w/ Fender
INCLUDED TSR, Fender Kit, Travel Spacers
ASTM RATING 5
GVWR 136kg ASTM 5 / 150kg ASTM 4
